Product Overview

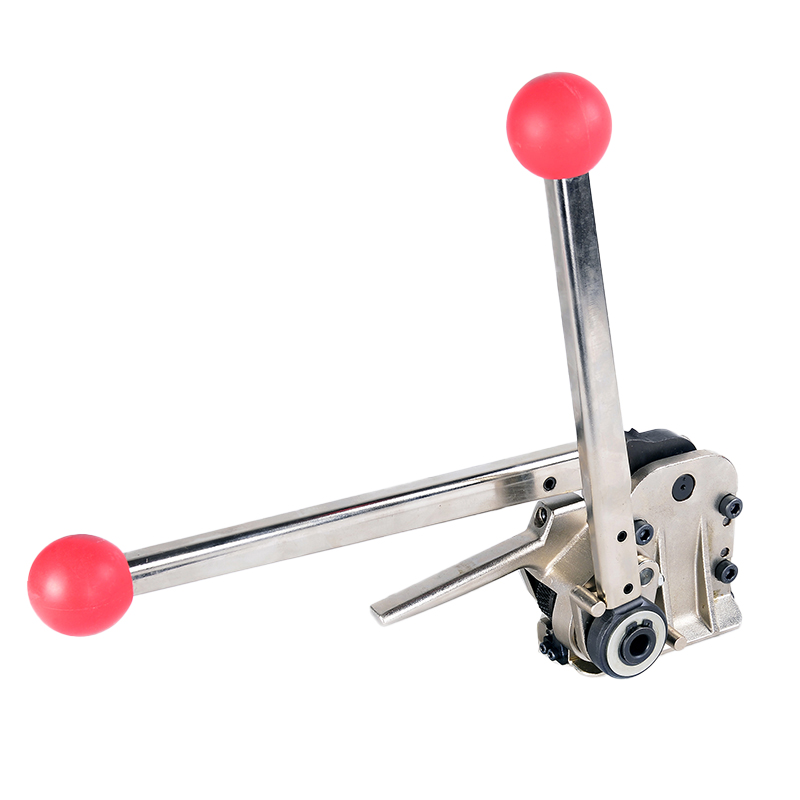

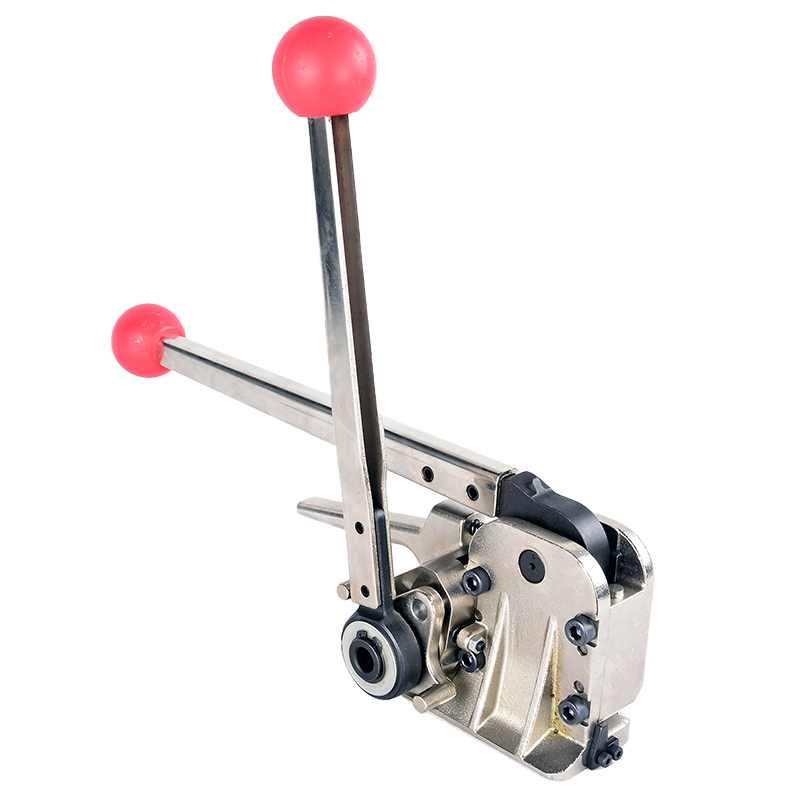

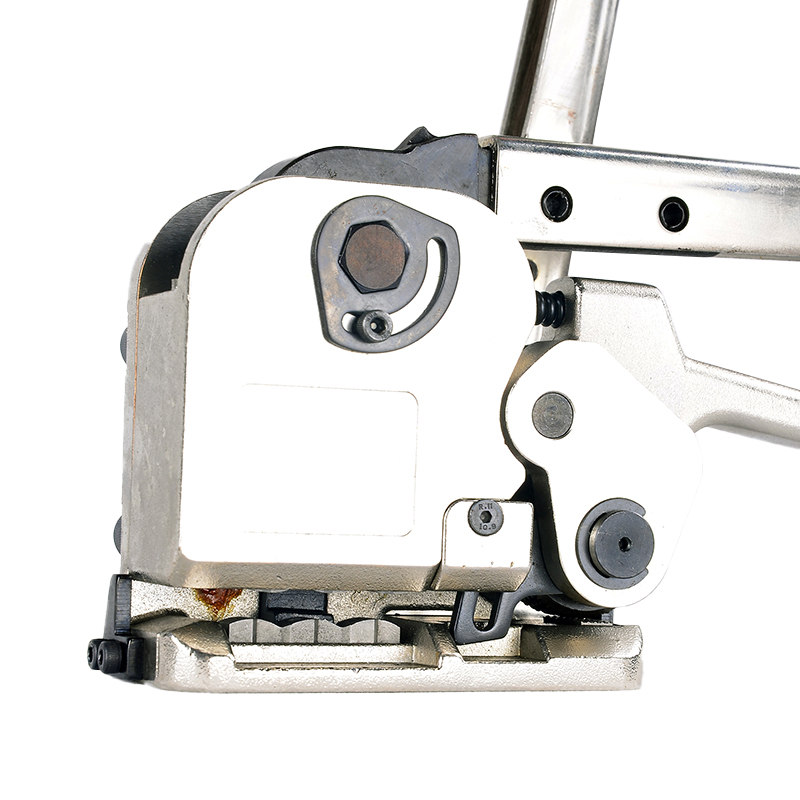

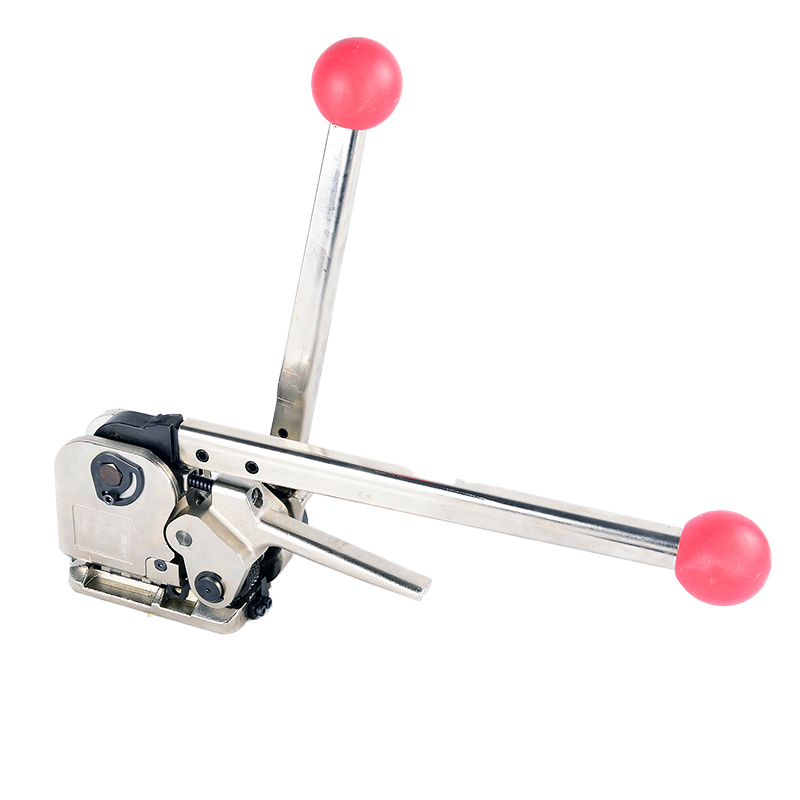

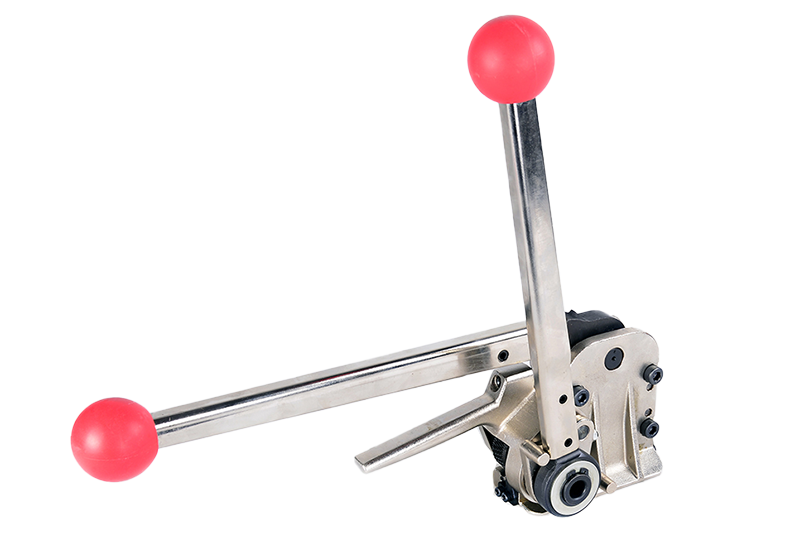

Manual Strapping Tool 13-19mm 0.38-0.8mm
The SG191 Manual Strapping Tool revolutionizes heavy-duty bundling with its sealless, powerless design, engineered to secure industrial loads without cords, consumables, or compromises. Compatible with steel, aluminum, and copper straps ranging from 12.7–19 mm in width and 0.38–0.8 mm in thickness, it leverages a patented "yin-yang" interlock system to mechanically fuse strap ends, achieving 70–85% joint strength relative to the strap’s tensile integrity—eliminating seal consumables and reducing operational costs by approximately 10%. Generating up to50 kg of tension force (or 6,000 N in premium models), this tool effortlessly immobilizes heavy loads such as steel coils, aluminum ingots, lumber stacks, and construction materials, ensuring stability during transit or storage.
Product Parameters
| Model name |
Manual Buckle-free Steel Strapping Tool SG191 |
| Description |
it can operate manually,which connect with function of tensioning,sealing and cutting.It is widely used in manufacturing,metallurgy,transportation ect,. Steel bands of common and high tensile strength are both acceptable. |
| Feature |
1. convenient operation,smart design, no need to connect any power |
| 2. buckle free,with double pressure instructure to achieve the connection of two strap, reliable performance of connection |
| 3.high speed tension,special structure design, easy to achieve tension and package of steel, aluminum ingots, heavy packages |
| 4.all the parts with high - strength aluminum alloy to keep long time use, reliable design and advanced manufacturing technology |
| 5. smart design and avoid fatigue |
| Applicable packing strap |
steel strap |
| Packing strap size |
strap width |
13-19mm |
| strap thickness |
0.38-0.8mm |
| Lock mode |
Yin-Yang buckle |
| Joint force |
the max. 70%-80% |
| Weight |
3.5kgs |
| Size |
390*330*95mm |
Features of tool
Weighing just 3.5 kgs and featuring a compact design (390×330×95 mm), its high-strength aluminum alloy body with IP54-rated protection withstands harsh environments like foundries, ports, and construction sites, while tool-free width adjustment enables rapid adaptation between strap sizes in under three minutes. Ergonomically designed with anti-slip handles and vibration dampening, it minimizes operator fatigue during prolonged use, making it ideal for logistics hubs, manufacturing plants, and remote job sites where power sources are unavailable. With a durability rating exceeding 500,000 cycles and modular replaceable components (e.g., cutters, rollers), the SG191 merges brute-force reliability with low-maintenance efficiency, establishing itself as the go-to solution for industries demanding uncompromising load security, material versatility, and cost-effective bundling performance worldwide.
Key Advantages
Zero Consumables: Eliminates metal buckles, saving $1,200+/year in replacement costs.
Human-Ergonomic Design: 4.2kg weight + ergonomic handles reduce operator fatigue by 40%.
Extreme Durability: Survives -20°C to +60°C environments and 95% humidity.
